Product Feature:
P/N: FL2835-CV24120
Brand: Epistar or branded chip
Chip Wire: 99.99% purity(dia 1.0mm or above) gold wire
Beam Angle: 120° Emitting
Lifetime: LM80- 50000Hrs
Operating Temp. -20 ~ 45°C
PCB: 2Oz Cooper/ double-side FPCB
Mounting: Imported 3M tape 300sle
BIN: ONE BIN Only
Luminaire in: CLASS II/III
Packing: 300meter/Ctn. (68x26x28cm)

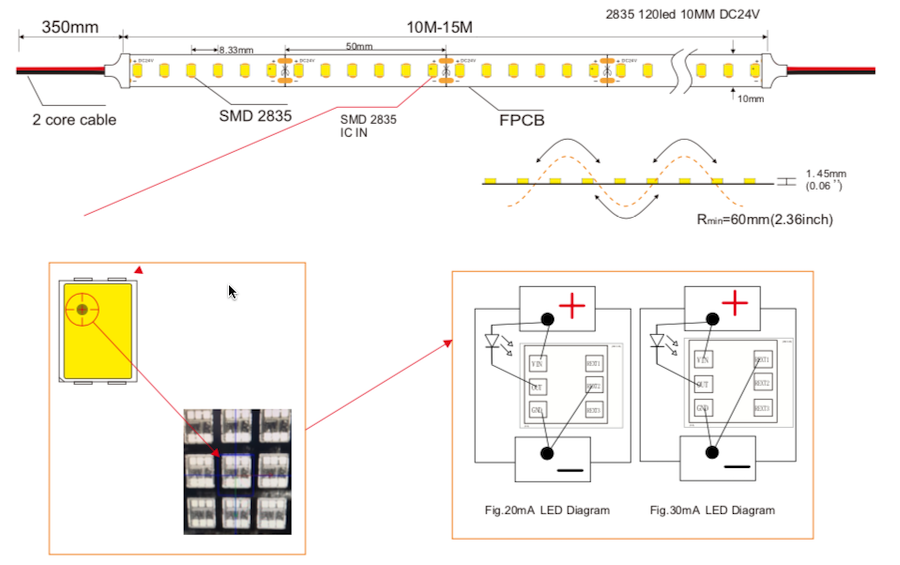

Technical Dimension:
.png)
Product Specification:
Technical Dimension:
Product Specification:
| LED/M | Power | Voltage | Width | Lumen | CRI | Cut length | CCT | Length (two side Feed) |
|
| 120 | 24W/m | 24V | 10mm | 100-120lm/w | 80 | 6led/50mm | 2700k, 3000k, 4000k, 6500k | 10m/pcs | 32.81ft/pcs |
| 120 | 24W/m | 24V | 10mm | 80-100lm/w | 90 | 6led/50mm | 2700k, 3000k, 4000k, 6500k | 10m/pcs | 32.81ft/pcs |
| 120 | 24W/m | 24V | 10mm | 80-90lm/w | 95 | 6led/50mm | 2700k, 3000k, 4000k, 6500k | 10m/pcs | 32.81ft/pcs |
| Tips: other customized color or to build your customized Bin code system pls contact us further. | |||||||||
| |
|||||||||

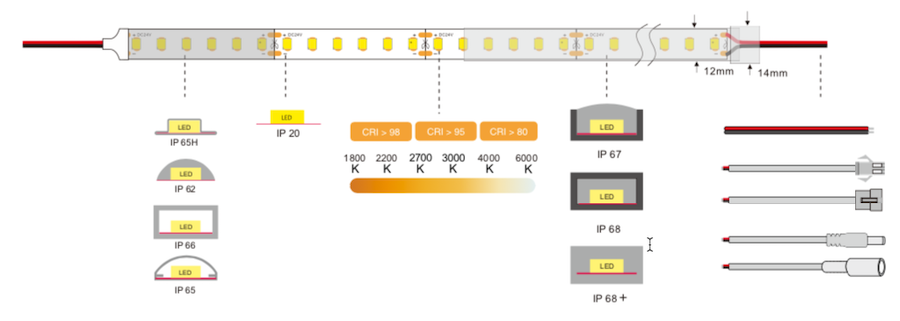

| LED Strip Solution: | |||||||||
Note:
1. free sample and quick delivery within 3working days
2. Pls contact us for detail data sheet / High Quality Picture
3. Customized led strip light is accepted.
4. IES Document / Test Report available.
5. Pls contact us for DWG/CAD drawing
