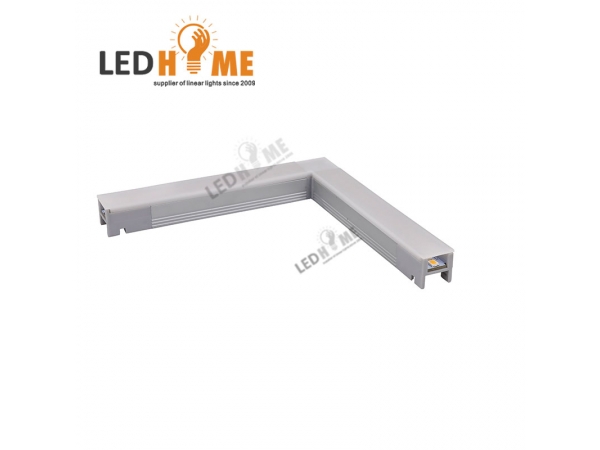

Linkable linear LS1213
-Super slim linear bar 12x13mm
-Spot Free seamless linkable
-Fast connection and solderless
- Multi installation: with clips and with magnetic
- LED for display, cabinet, funiture, shelf & cove
-Spot Free seamless linkable
-Fast connection and solderless
- Multi installation: with clips and with magnetic
- LED for display, cabinet, funiture, shelf & cove
for Shelf - Cabinet - Display - Cove exclusive-designed
Specification:
Light Source Type: LED
Voltage: 24V DC
Operating Temperature: 32-113 °F (0-45 °C)
Lamp Life: 50,000hr / 70%
Available Color: 2700K, 3000K, 3500K, 4000K, 6000K.
Efficiency: approx. 80lm/W Point Source
IP Rating: IP 20 indoor use
Finish: Aluminum + PC diffuser
Max Connection per Single Power Feed: 60W in one row (Single power feed)
Parameter:
| P/N | Size | Power | Voltage | Lumen | Color | CRI | IP Rate |
| LS1213-100 | L100xW12.5xH13.5mm | 1.2W | 24V | 85lm | 2700K 3000K 3500K 4000K 6000K | Ra90+ 3SDCM | IP20 |
| LS1213-200 | L200xW12.5xH13.5mm | 2.5W | 24V | 186lm | |||
| LS1213-500 | L500xW12.5xH13.5mm | 6W | 24V | 488lm |
Drawing:
.png)
A: (length) 100mm, 200mm, 500mm optional
Customized length, pls contact us for further details and offer.
Multi Accessories for choice:

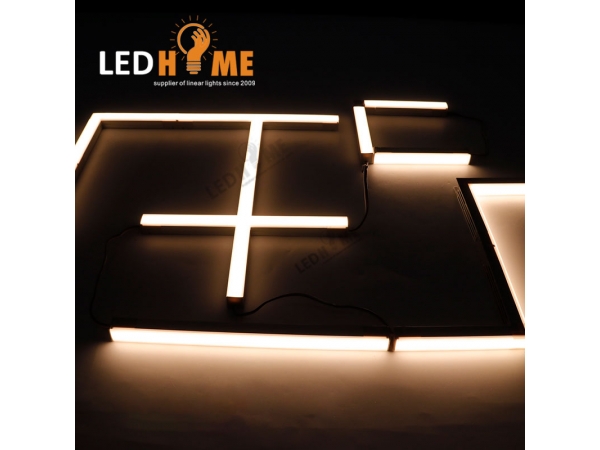

Application:(nice choice for DIY under cabinet light)
More details pls check below product Video:
