P/N: FL5050-CV12/24060
Brand: Epistar or branded chip
Chip Wire: 99.99% purity(dia 1.0mm or above) gold wire
Beam Angle: 120° Emitting
Lifetime: LM80- 50000Hrs
Operating Temp. -20 ~ 45°C
PCB: 2Oz Cooper/ double-side FPCB
Mounting: Imported 3M tape 300sle
BIN: ONE BIN Only
Luminaire in: CLASS II/III
Packing: 300meter/Ctn. (68x26x28cm)

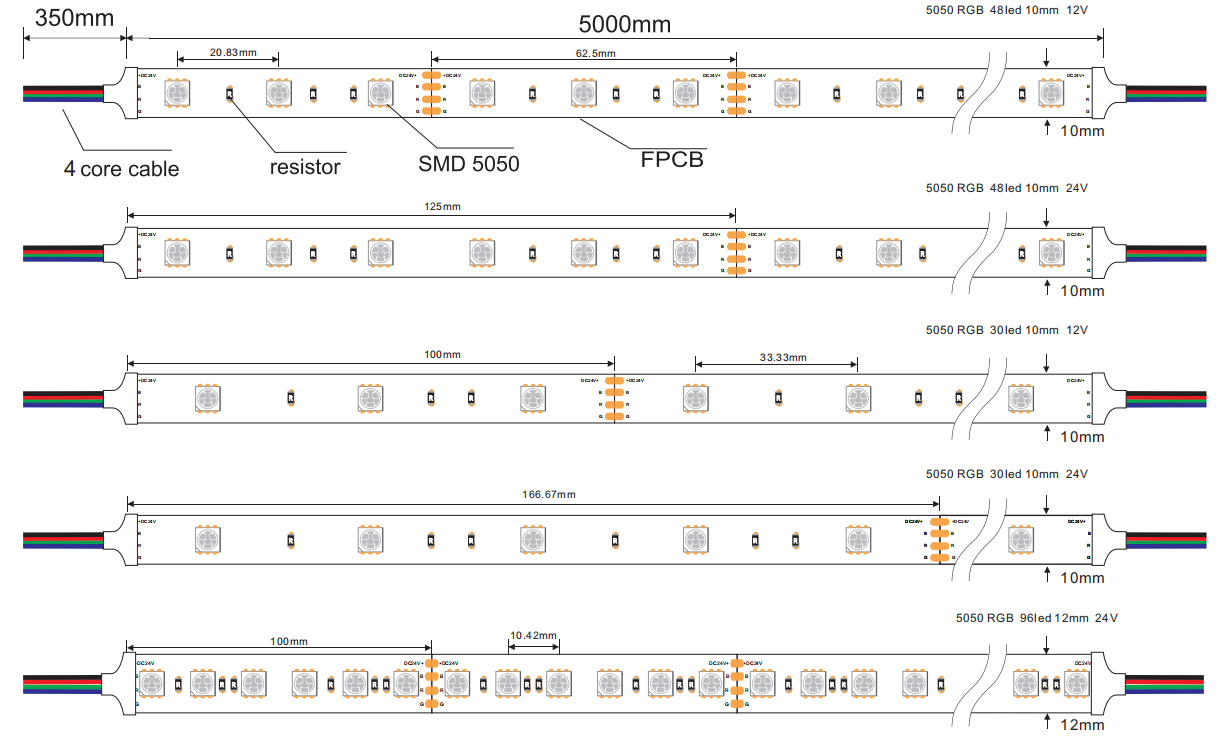

Technical Dimension:
Product Specification:
LED Strip Solution:
Technical Dimension:
Product Specification:
| LED/M | Power | Voltage | Width | Cut length | Colour | Length (two side Feed) |
|||
| 60 | 14.4W/m | 12/24V | 8/10/12mm | 6led/25mm | RGB | 5m/pcs | 16.40ft/pcs | ||
| 60 | 14.4W/m | 12/24V | 8/10/12mm | 66-88lm/w | 6led/25mm | RGB | 5m/pcs | 16.4ft/pcs | |
| Tips: other customized color or to build your customized Bin code system pls contact us further. |
Note:
1. free sample and quick delivery within 3working days
2. Pls contact us for detail data sheet / High Quality Picture
3. Customized led strip light is accepted.
4. IES Document / Test Report available.
5. Pls contact us for DWG/CAD drawing
