Waterproof LED Strip

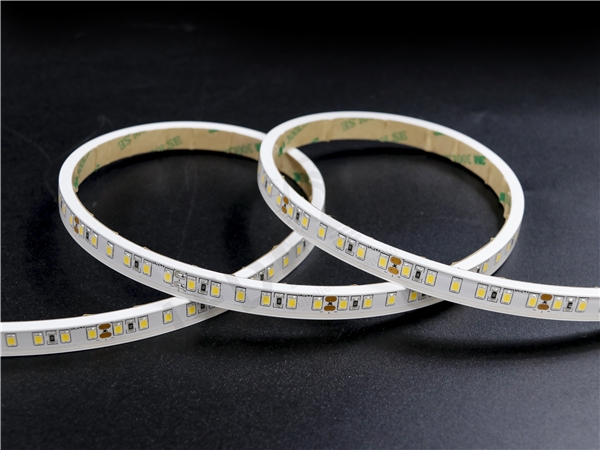

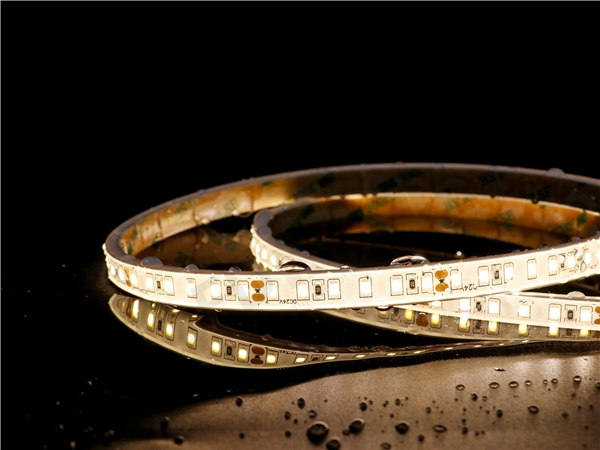

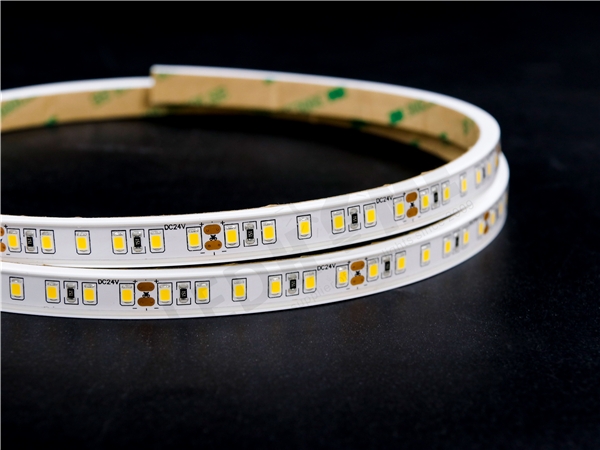

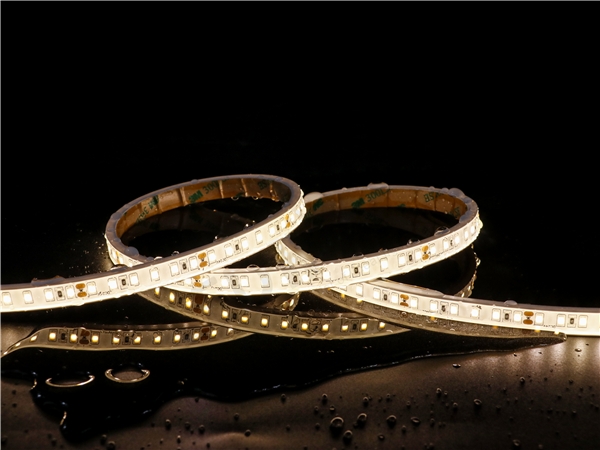

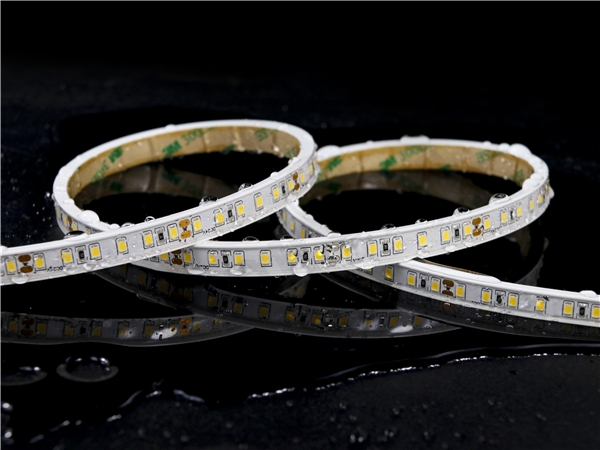

PU IP68 2835 120led/m Flex LED strip

Item Type: PU IP68 2835 LED strip
P/N: FL2835OS-CV12/24120-8/10W27-PU
Brand: Epistar or branded chip
Chip Wire: 99.99% purity(dia 1.0mm or above) gold wire
Beam Angle: 120° Emitting
Lifetime: LM80- 50000Hrs
Operating Temp. -20 ~ 45°C
PCB: 2Oz Cooper/ double-side FPCB
Mounting: Imported 3M tape 300sle
BIN: ONE BIN Only
Luminaire in: CLASS II/III
Certificate: CE, RoHs
    Product Feature:

    Pin Code

    FL2835OS-CV12/24120-8/10W27-PU

    LEDs/m

    120

    Power/m

    20/24W

    Input voltage

    12/24V

    PCB Width

    8/10mm

    Working temperature

    25°C 〜45°C

    IP degree

    IP68-PU

    CRI

    Ra80

    Lumen

    1380-1800lmlm

    Color

    2700k/3000K/4000K/5000K /6000K, other special C.T. is accepted

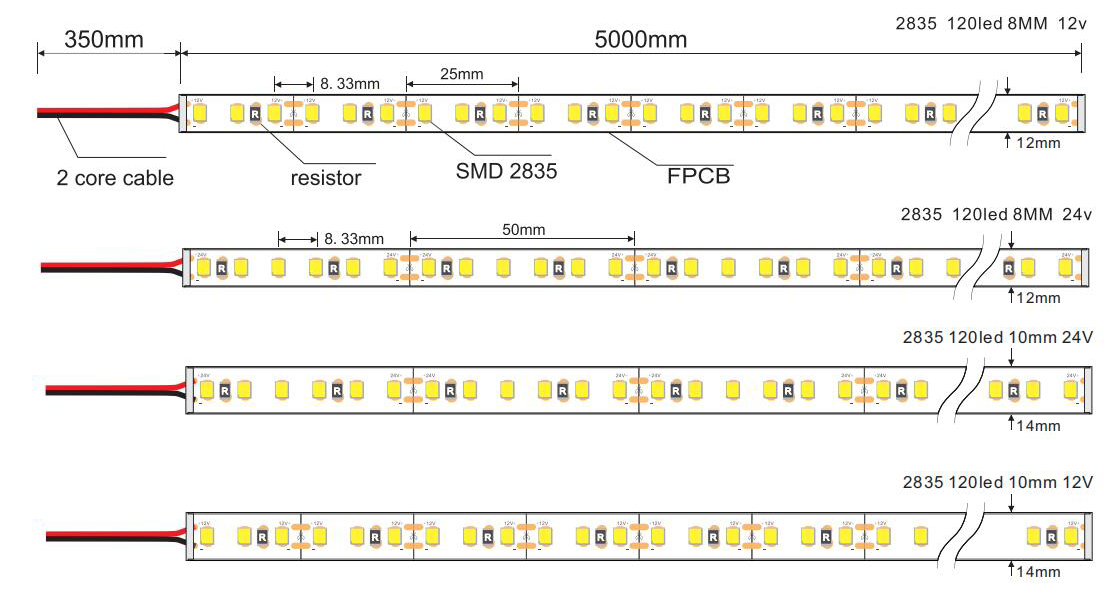

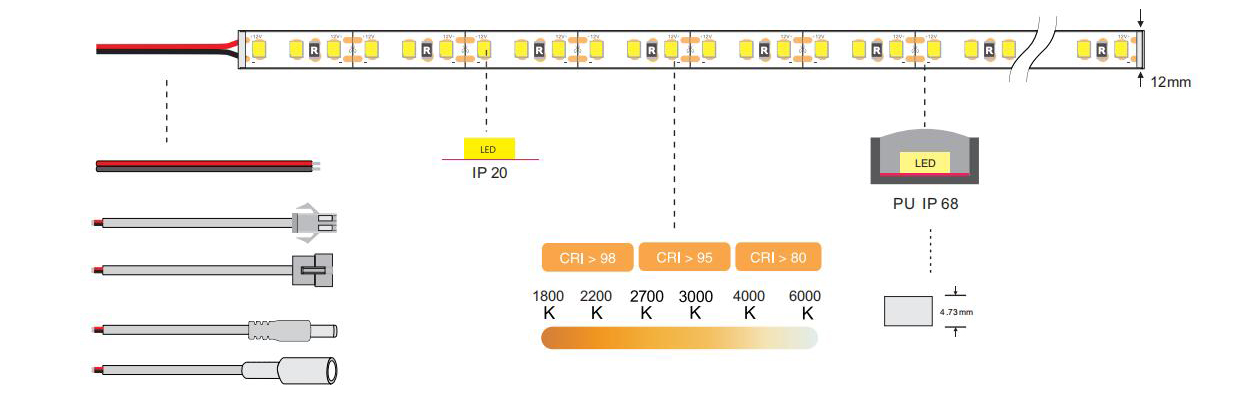

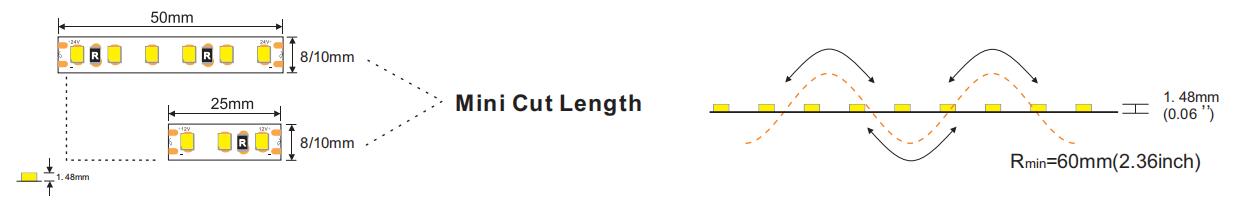

    Technical Drawing:

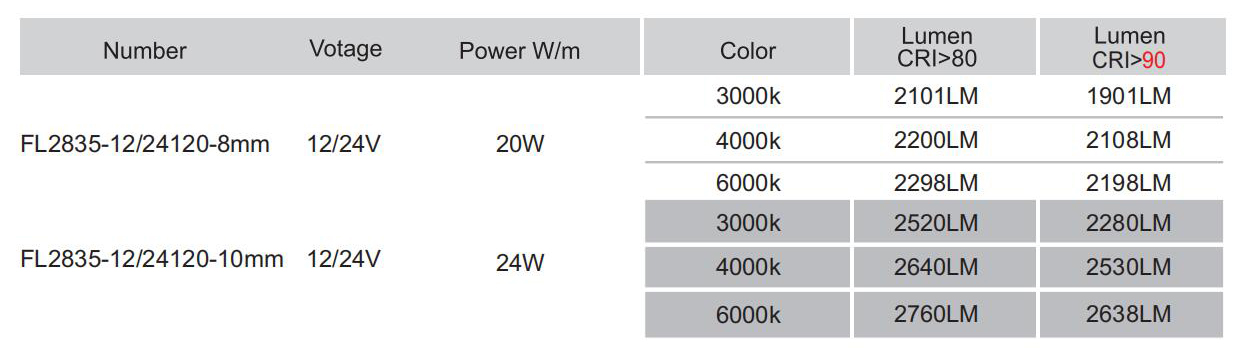

    Product Specification:

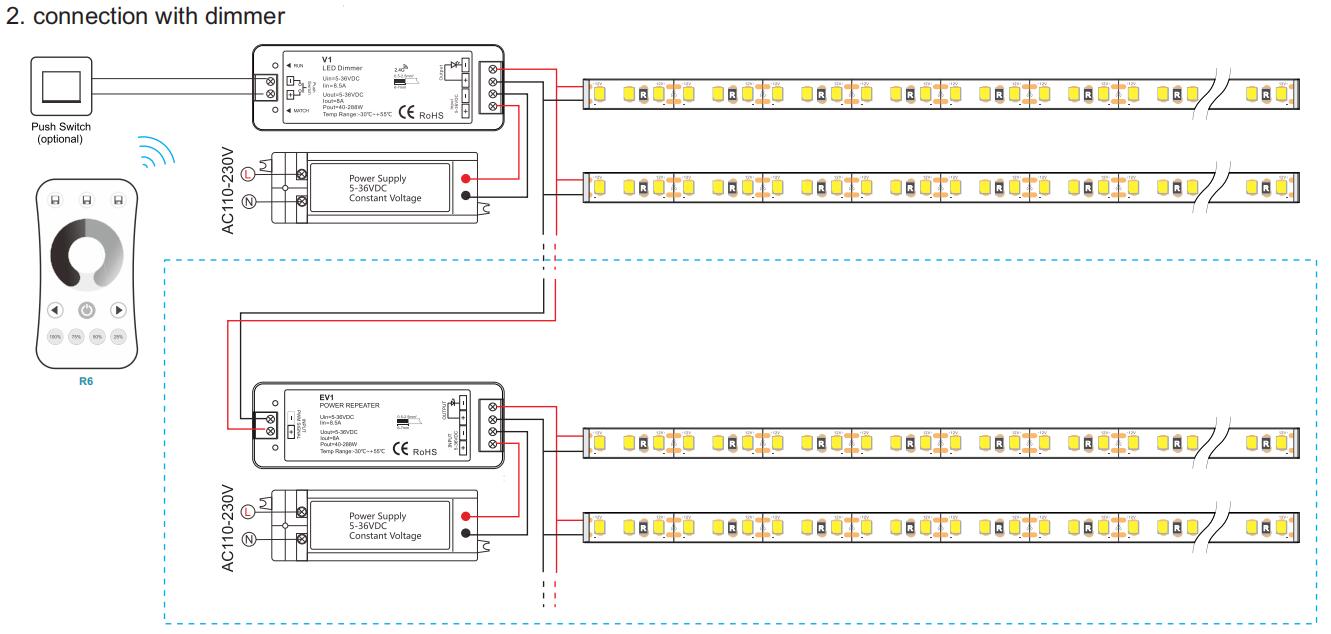

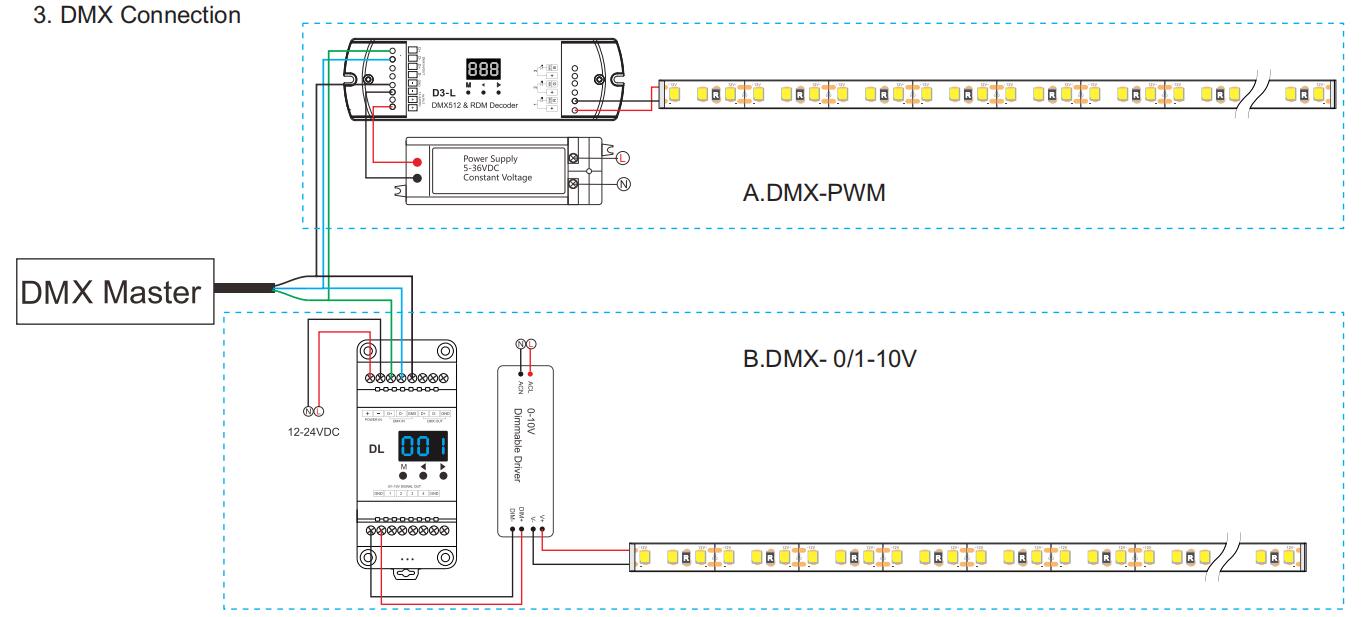

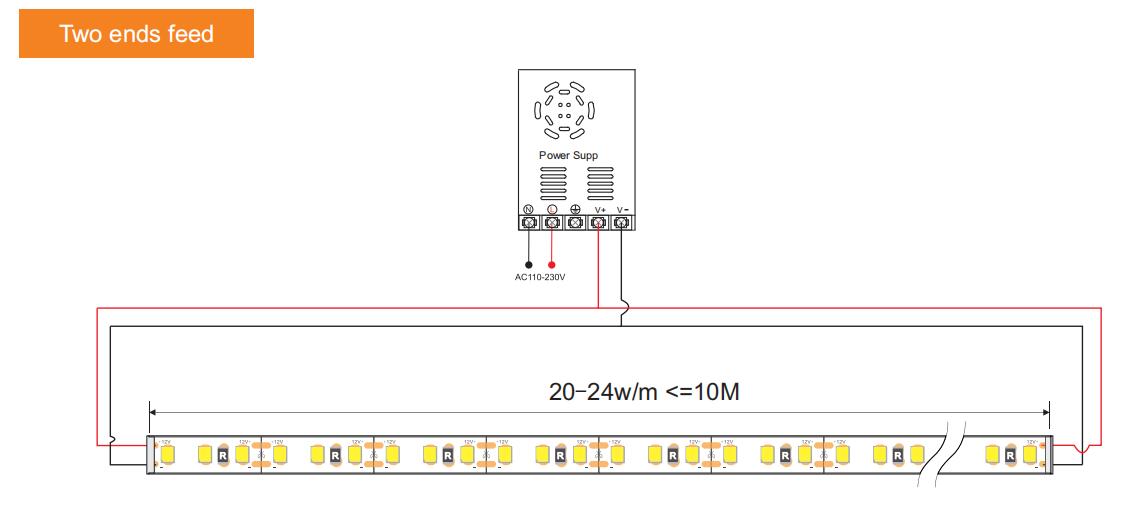

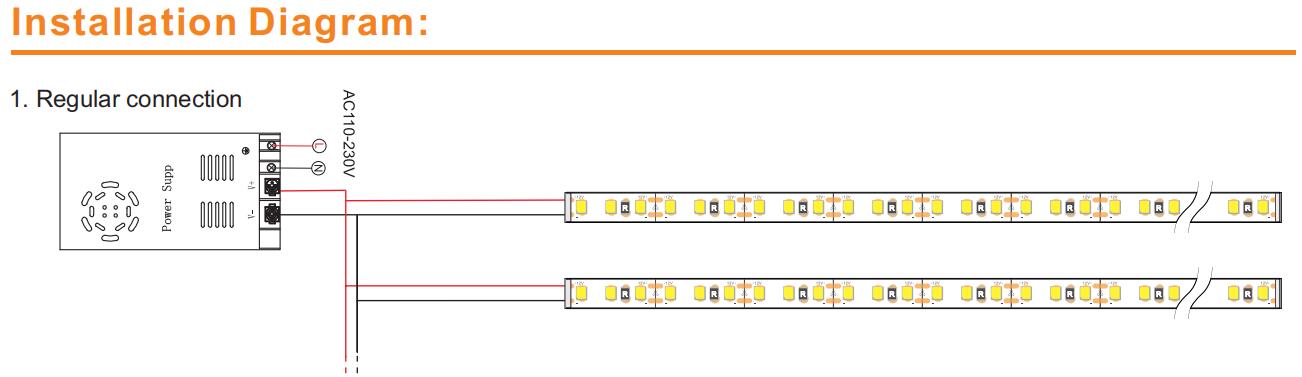

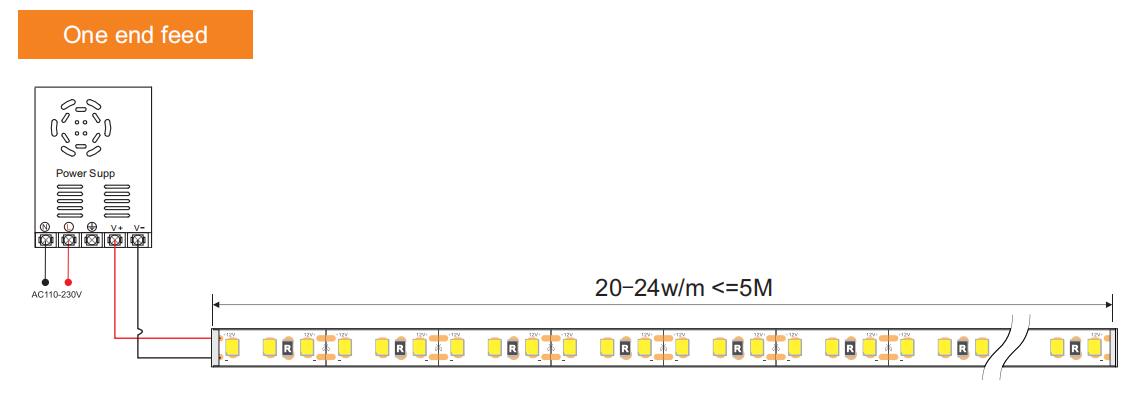

    LED Strip Solution:

    Note:
    1. Free sample and quick delivery within 3working days.
    2. Pls contact us for detail data sheet / High Quality Picture.
    3. Customized is accepted.
    4. IES Document / Test Report available.
    5. Pls contact us for DWG/CAD drawing.















    File Name : Format: Size: Download:
