DTW CCT Strip

1919 264led CCT Light Strip (2pcs LEDs by team)

Item Type: CCT LED strip (2pcs LEDs by team)
P/N: FLW1919-CV24264-10CCT
Brand: Epistar or branded chip
Chip Wire: 99.99% purity(dia 1.0mm or above) gold wire
Beam Angle: 120° Emitting
Lifetime: LM80- 50000Hrs
Operating Temp. -20 ~ 45°C
PCB: 2Oz Cooper/ double-side FPCB
Mounting: Imported 3M tape 300sle
BIN: ONE BIN Only
Luminaire in: CLASS II/III
Certificate: CE, RoHs
    Product Feature:

    Pin Code

    FLW1919-CV24264-10CCT

    LEDs/m

    264

    Power/m

    19W

    Input voltage

    24V

    PCB Width

    10mm

    Working temperature

    25°C 〜45°C

    Beam angle

    120°

    CRI

    Ra90

    Lumen

    /

    Color

    Tunable white:2700k/3000k+6000k; 2700k+4000k; 4000k+6000k

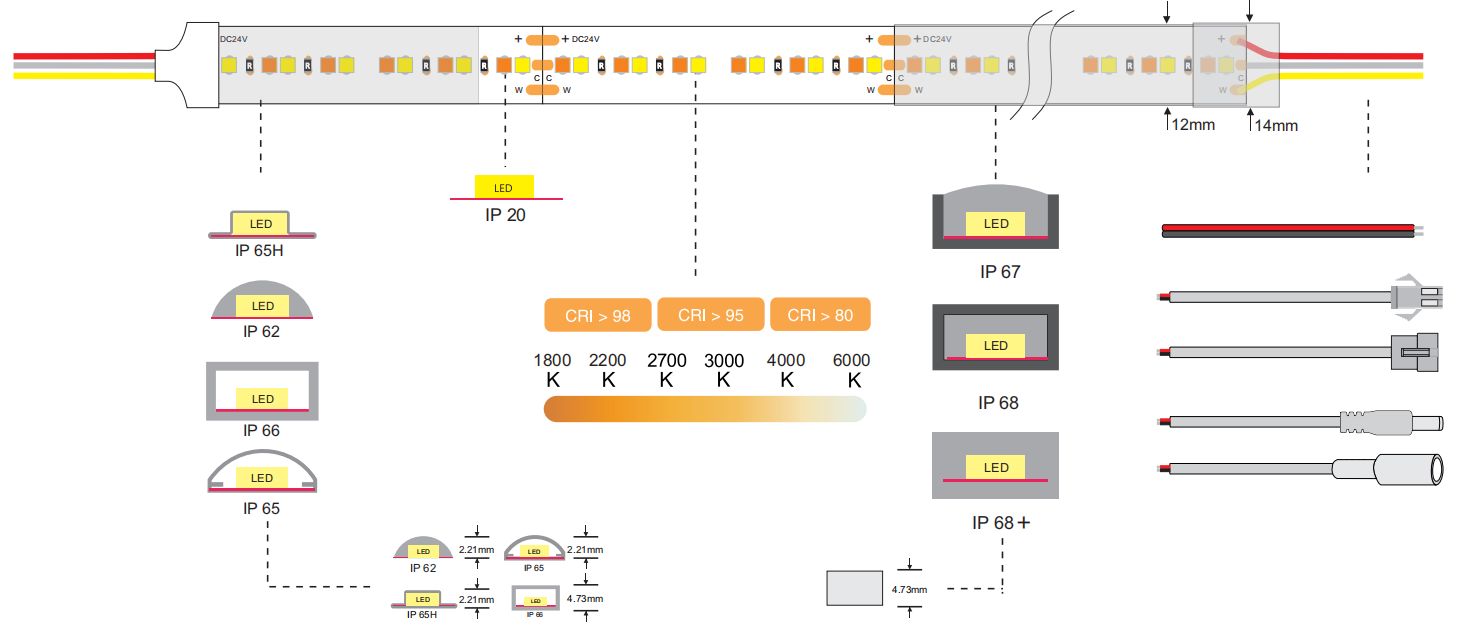

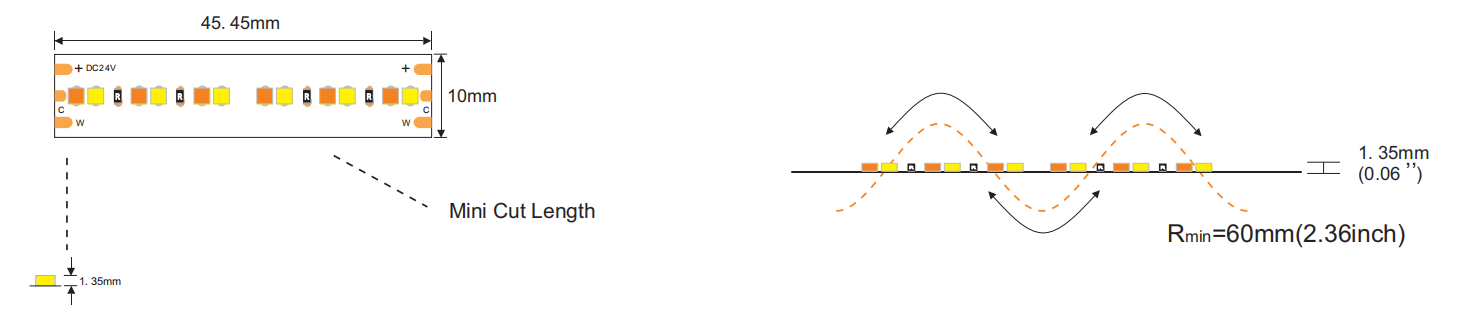

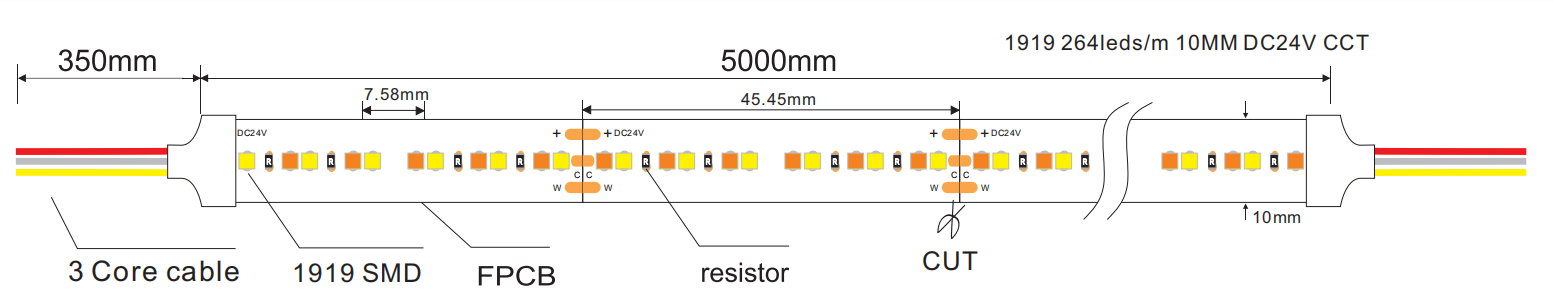

    Technical Drawing:

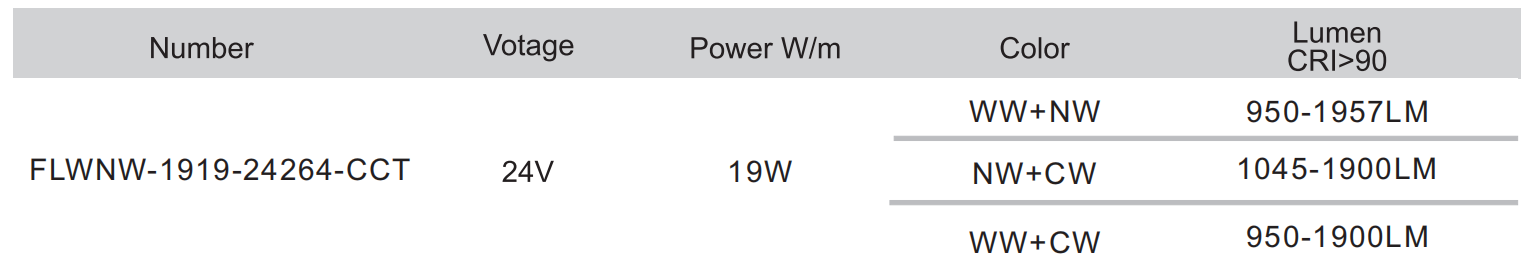

    Product Specification:

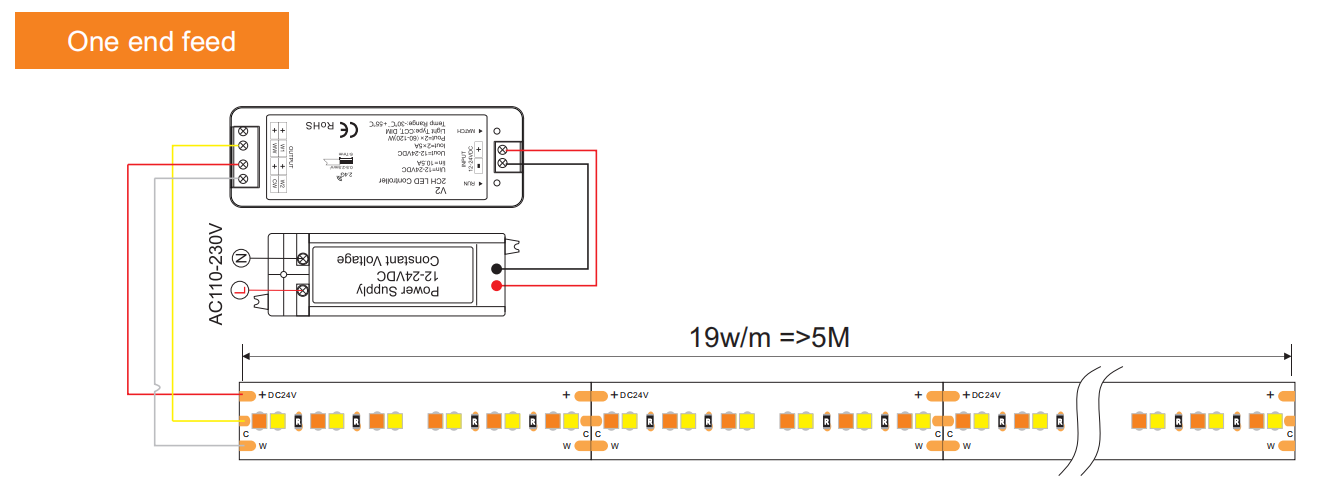

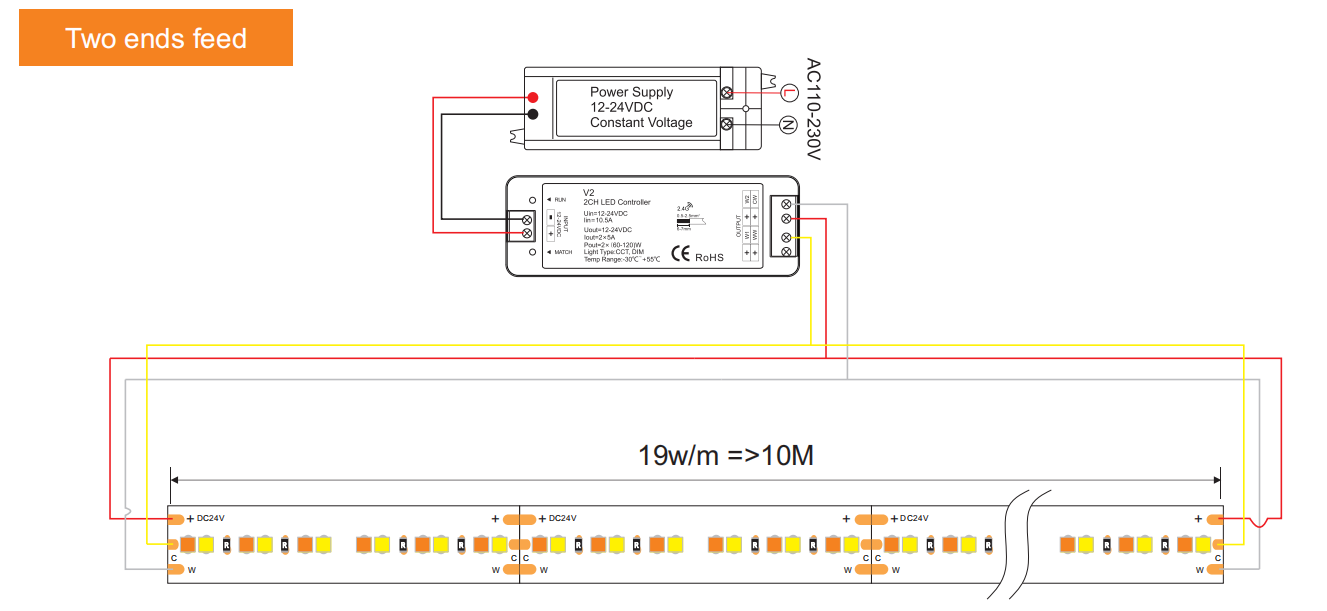

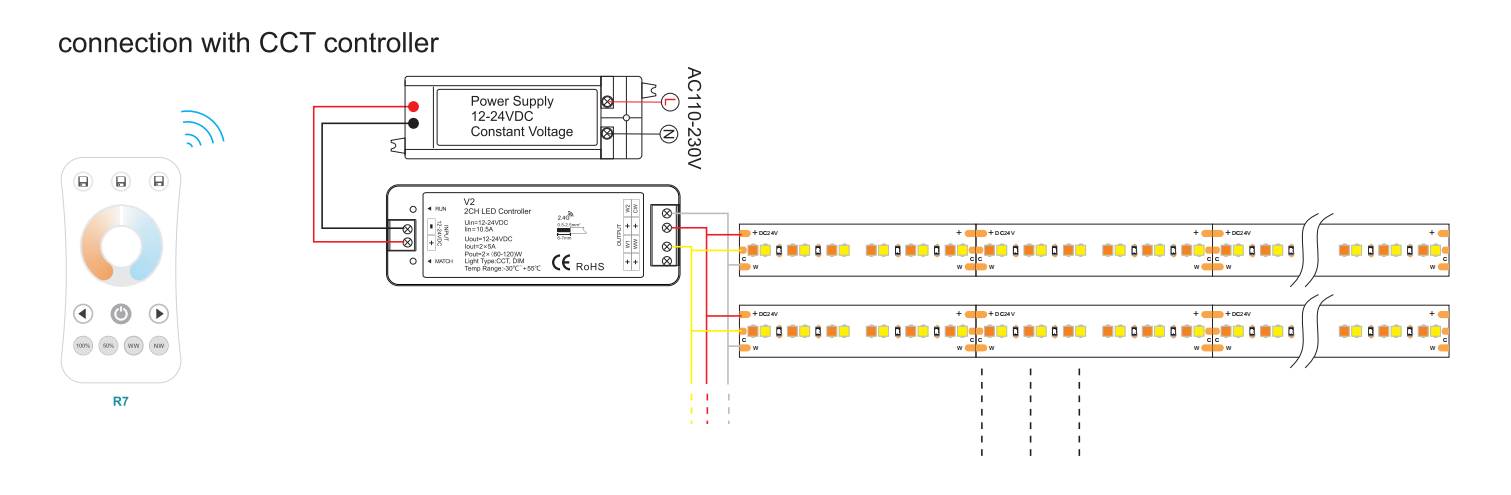

    LED Strip Solution:

    Note:
    1. Free sample and quick delivery within 3working days.
    2. Pls contact us for detail data sheet / High Quality Picture.
    3. Customized is accepted.
    4. IES Document / Test Report available.
    5. Pls contact us for DWG/CAD drawing.










    File Name : Format: Size: Download:
