DIYNEON- Topview

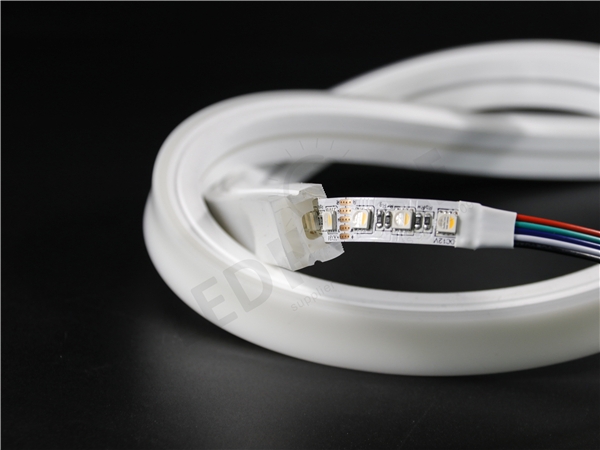

20x14mm Flexible silicon tube (Top view)

Dots-free & Uniform light silicon profile for 12mm PCB strip
1.Silicon one time Extrusion profile
2. Frosted surface,size:W20mm*H14mm
3.Regular 5meter/pcs; max 50meter per roll with wire inside
4.Free Bendable, flexible silicon, extrusion profile

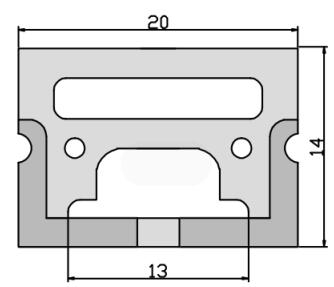

     Drawing Size

     Product Description

    Pin Code

    AP2014 F-T1

    Size

    20x14mm

    Strip PCB

    12mm

    Max Power

    14W/M

    Suggested LED Strip

    min 120LED/M Dots free

    Light Transmission

    65%

    Beam Angle

    180°

    View type

    Top view

    Certification

    RoHs, Reach, SGS

     Application


     Other Products

    Note:
    1. Free sample and quick delivery within 3working days.
    2. Pls contact us for detail data sheet / High Quality Picture.
    3. Customized is accepted.
    4. IES Document / Test Report available.
    5. Pls contact us for DWG/CAD drawing.
