Long Length LED Strip

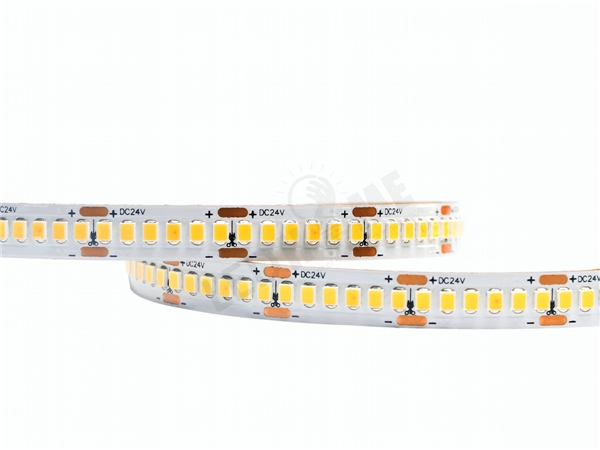

15 Meters 2835 240led LED Strip without resistors

Item Type: Long length LED strip
P/N: FL2835IC-CC24240 -10W27
Brand: Epistar or branded chip
Chip Wire: 99.99% purity(dia 1.0mm or above) gold wire
Beam Angle: 120° Emitting
Lifetime: LM80- 50000Hrs
Operating Temp. -20 ~ 45°C
PCB: 2Oz Cooper/ double-side FPCB
Mounting: Imported 3M tape 300sle
BIN: ONE BIN Only
Luminaire in: CLASS II/III
Certificate: CE, RoHs
    Product Feature:

    Pin Code

    FL2835IC-CC24240 -10W27

    LEDs/m

    240

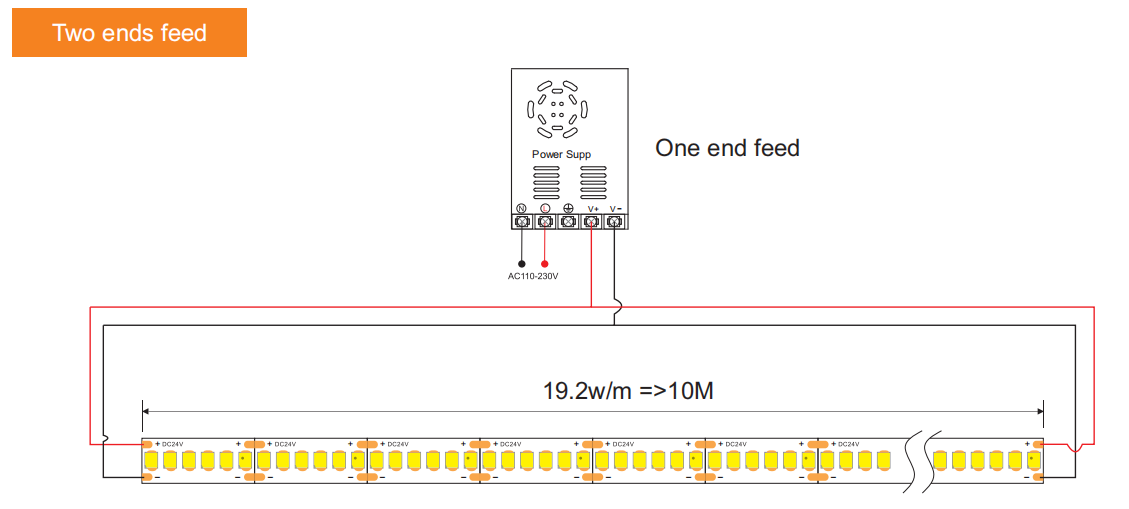

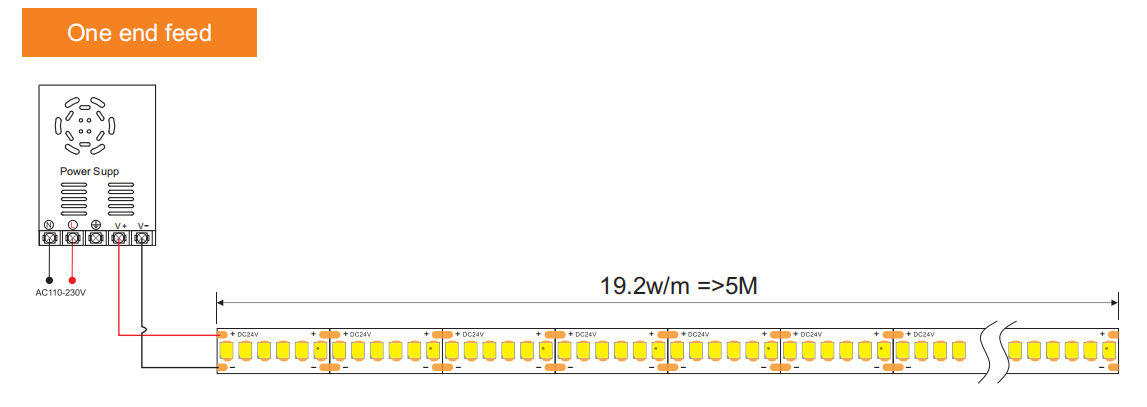

    Power (W/M) - two side driver

     9.6W/m -30meter


    19.2w/m -20meter

    Input voltage

    CC24V

    PCB Width

    12mm

     Length

    15 meters

    Lumen

    1930-2120lm

    Color

    2700k/3000K/4000K/5000K /6000K, other special C.T. is accepted

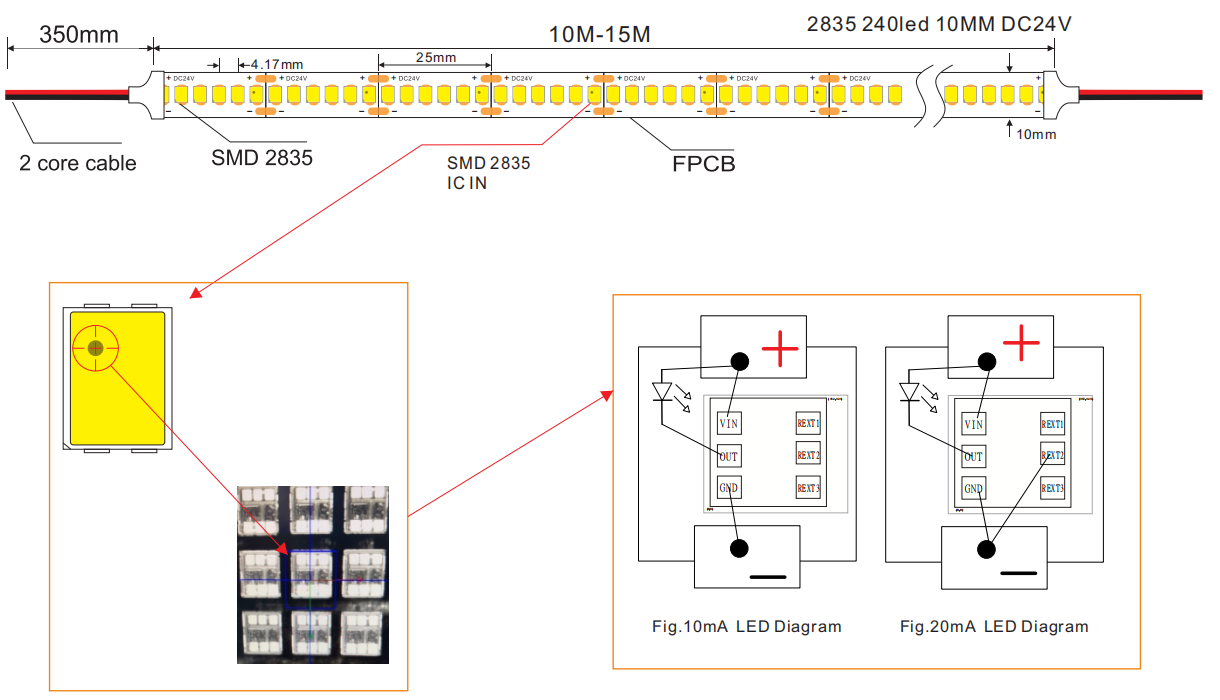

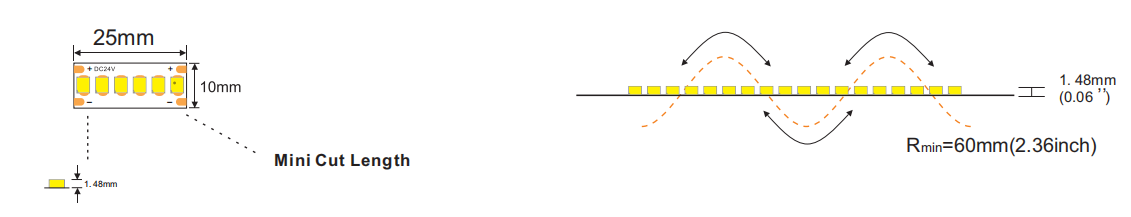

    Technical Drawing:

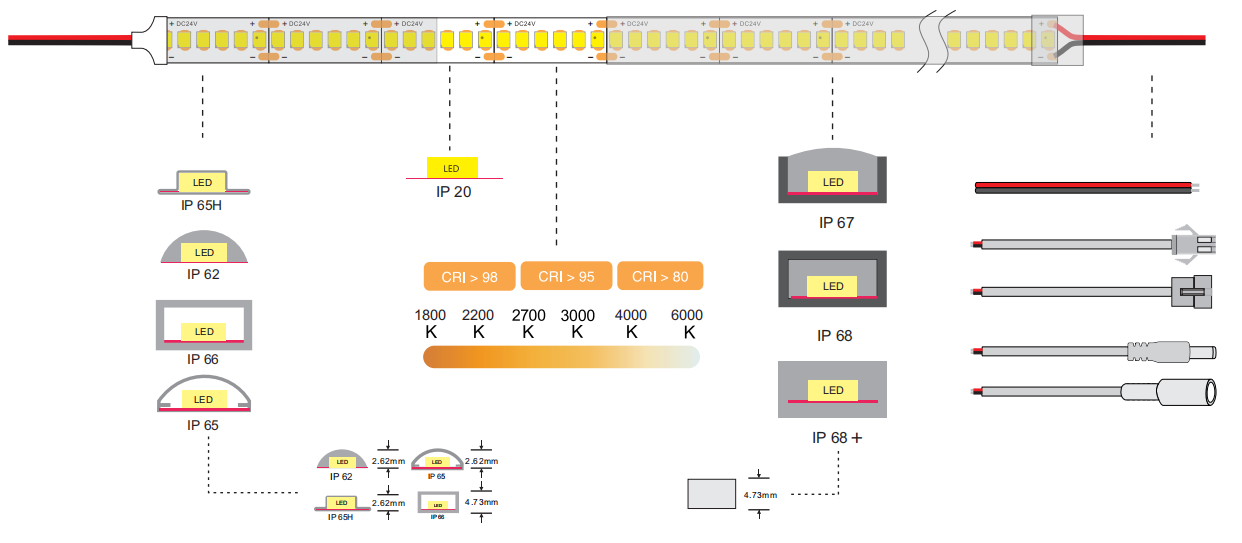

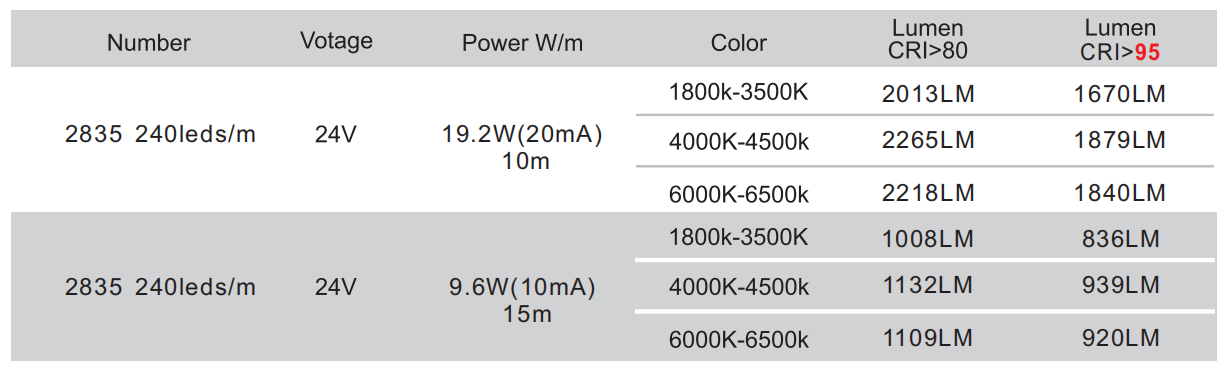

    Product Specification:

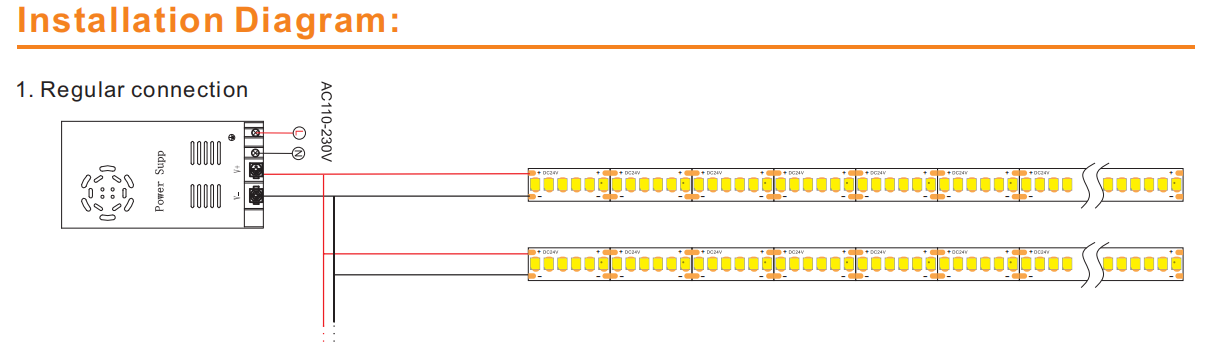

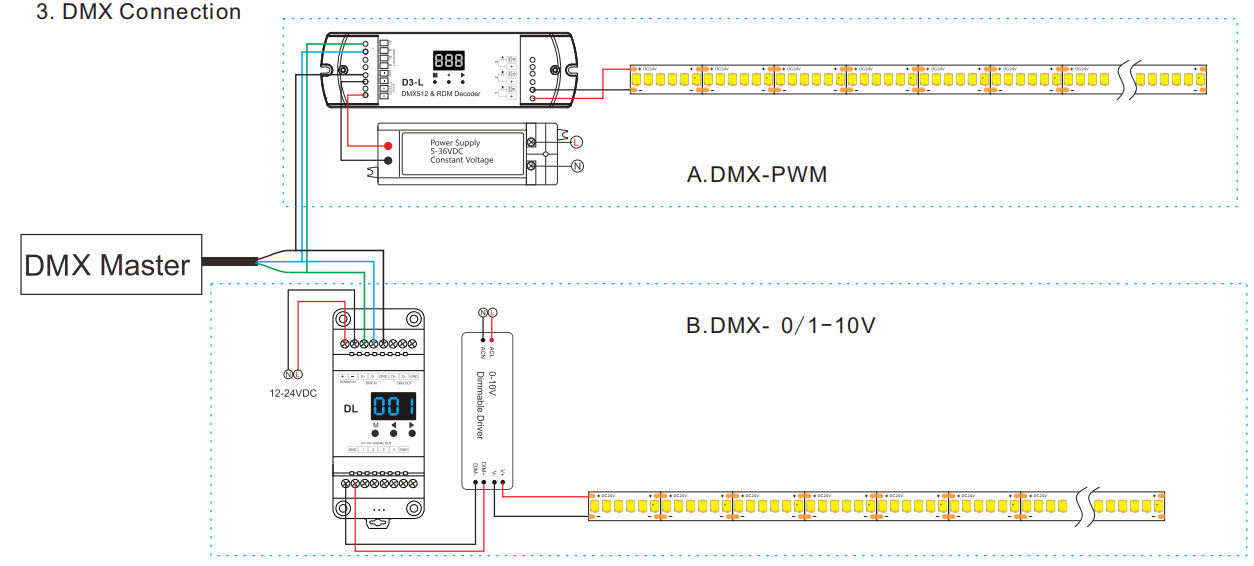

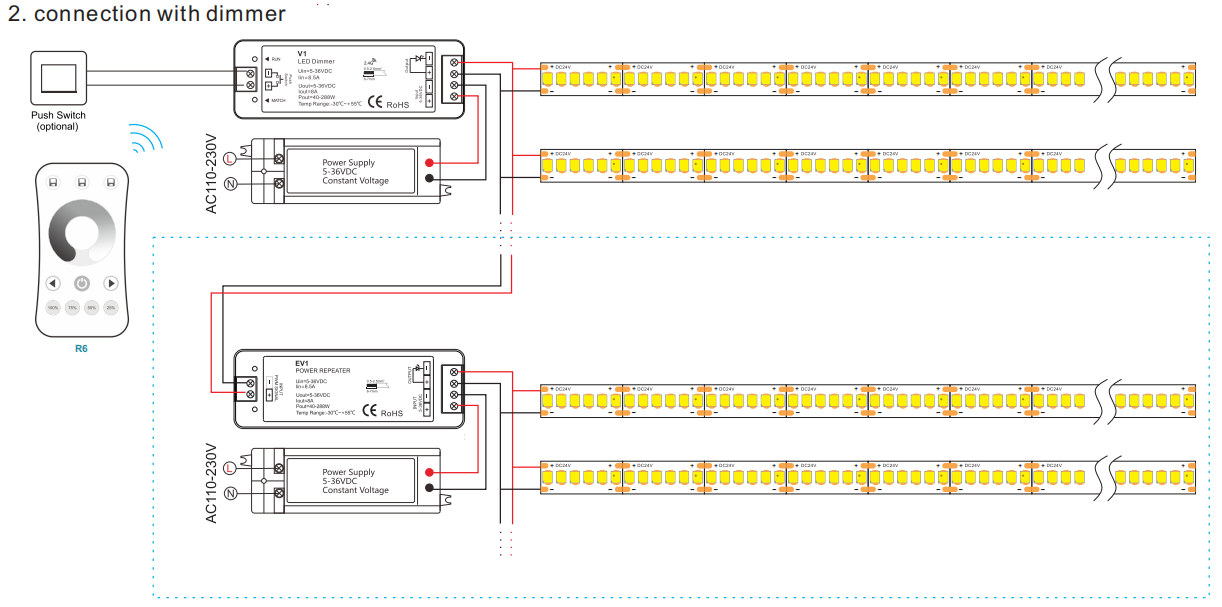

    LED Strip Solution:

    Note:
    1. Free sample and quick delivery within 3working days.
    2. Pls contact us for detail data sheet / High Quality Picture.
    3. Customized is accepted.
    4. IES Document / Test Report available.
    5. Pls contact us for DWG/CAD drawing.











    File Name : Format: Size: Download:
