Mini PCB LED Strip

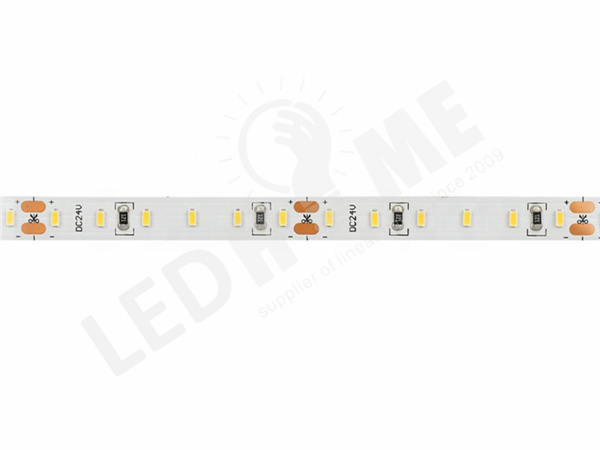

5mm 3014 120led/m Mini Led strip

Item Type: Mini PCB Flex LED strip
P/N: FL3014-CV12/24120-5W27
Brand: Epistar or branded chip
Chip Wire: 99.99% purity(dia 1.0mm or above) gold wire
Beam Angle: 120° Emitting
Lifetime: LM80- 50000Hrs
Operating Temp. -20 ~ 45°C
PCB: 2Oz Cooper/ double-side FPCB
Mounting: Imported 3M tape 300sle
BIN: ONE BIN Only
Luminaire in: CLASS II/III
Certificate: CE, RoHs

    Product Feature:

    Pin Code

    FL3014-CV12/24120-5W27

    LEDs/m

    120

    Power/m

    12W

    Input voltage

    12/24V

    PCB Width

    5mm

    Working temperature

    25°C 〜45°C

    Beam angle

    120°

    CRI

    Ra80/Ra90

    Lumen

    840-1000lm

    Color

    2700k/3000K/4000K/5000K /6000K, other special C.T. is accepted

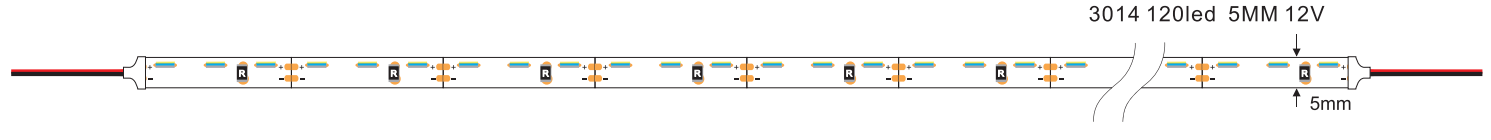

    Technical Drawing:

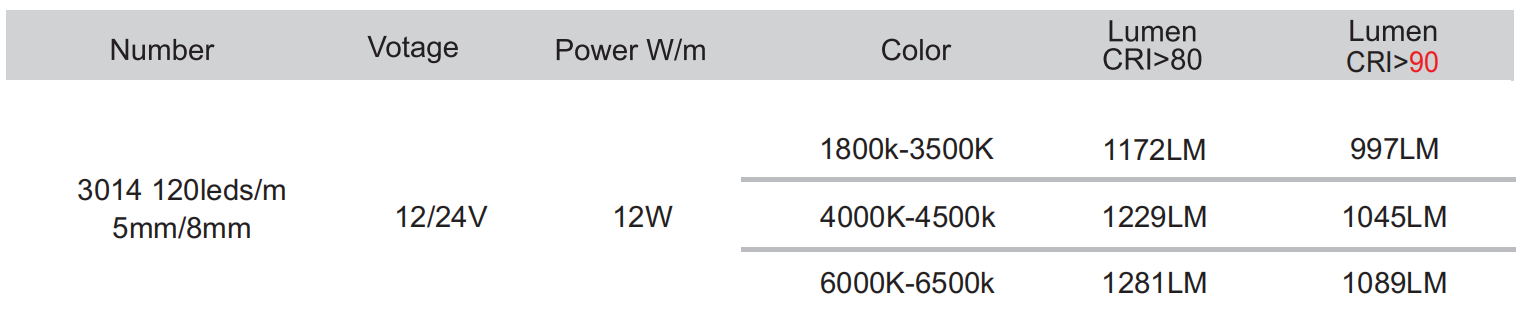

    Product Specification:
    Note:
    1. Free sample and quick delivery within 3working days.
    2. Pls contact us for detail data sheet / High Quality Picture.
    3. Customized is accepted.
    4. IES Document / Test Report available.
    5. Pls contact us for DWG/CAD drawing.
